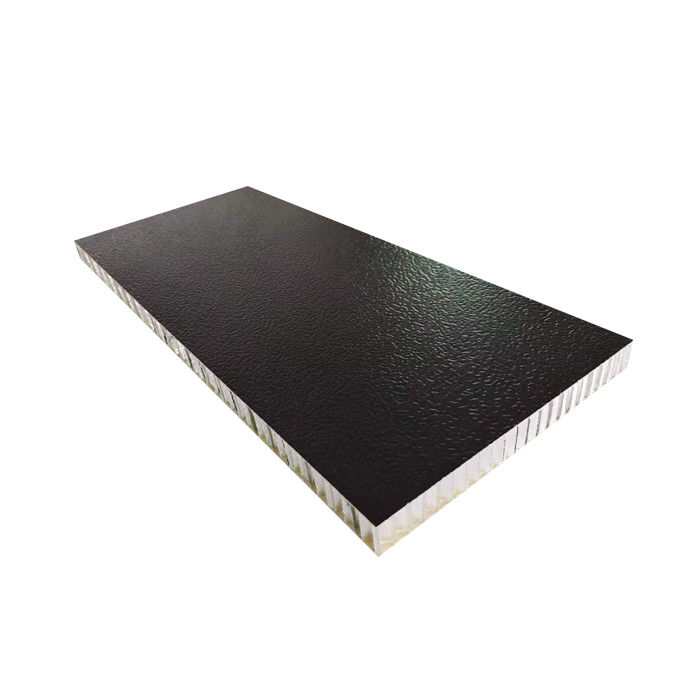

Worm Grain Aluminum Honeycomb Sandwich Panel For Truck Tonneau Cover
Aluminum honeycomb panel is a lightweight but strong metal composite panel, it's made from aluminum sheets and honeycomb structure
aluminum core by sandwiched lamination. It's widely used for making pickup truck tri-fold covers and we've been exporting it to many countries.
For building finish and decoration use, it's usually prefabricated as per framing system and installation drawings so that you can install the panels directly and quickly; for industrial use, we can produce and deliver it in large size (maximum 2000mm x 12000mm) and then the customers will further process it as per their purposes, we can also prefabricate the panels as per customer's designs and specifications.
The embossed aluminum honeycomb panel with worm texture is very popular for making pickup truck tonneau covers with its low weight but high stiffness and strength, we're producing thousands of covers monthly.
Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin
At a Glance:
| Material | Aluminum Alloy (3003/5052, etc.) |
| Regular Size (W*L*T) | 1,220*2,440/3,000*6 mm |
| Max. Size(W*L*T) | 2,000*10,000*200 mm |
| Regular Thickness | 10/12/15/20/25 mm |
| Available Thickness | 6-200 mm |
| Regular Surface Treatment | PVDF,PE,Powder Coating, Anodized, etc. |
| Perforation | Yes (customized) |
| Applications | Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
| Suggestion: | |
| 1. For interior wall (PE coating): range from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm) | |
| 2. For exterior wall (PVDF coating): 15mm, 18mm, 25mm (top plate: from 1.0mm to 1.5mm; bottom plate: from 0.7mm to 1.0mm) | |
Features:
- Light
- Good rigidity
- Flat and straight
- Good at wind-proof and pressing-proof
- Fire-proof
- Easy to process and shape
-Good at weather-proof
- Good intensity
- Good at sound and heat insulation
- Good at shock-resistance
- Green building material
- Energy-saving and environmental protection
Application
Aluminum honeycomb panel has widely used in facade cladding industry, interior decoration, ceiling, partition,
furniture industry, ship hull building and ship decoration, vehicle building and so on
